50W 100-2000MHz wifi 5g drone FPV UAV signal blocker countermeasure rf power amplifier module

50W 100-2000MHz drone FPV UAV signal blocker countermeasure rf power amplifier module

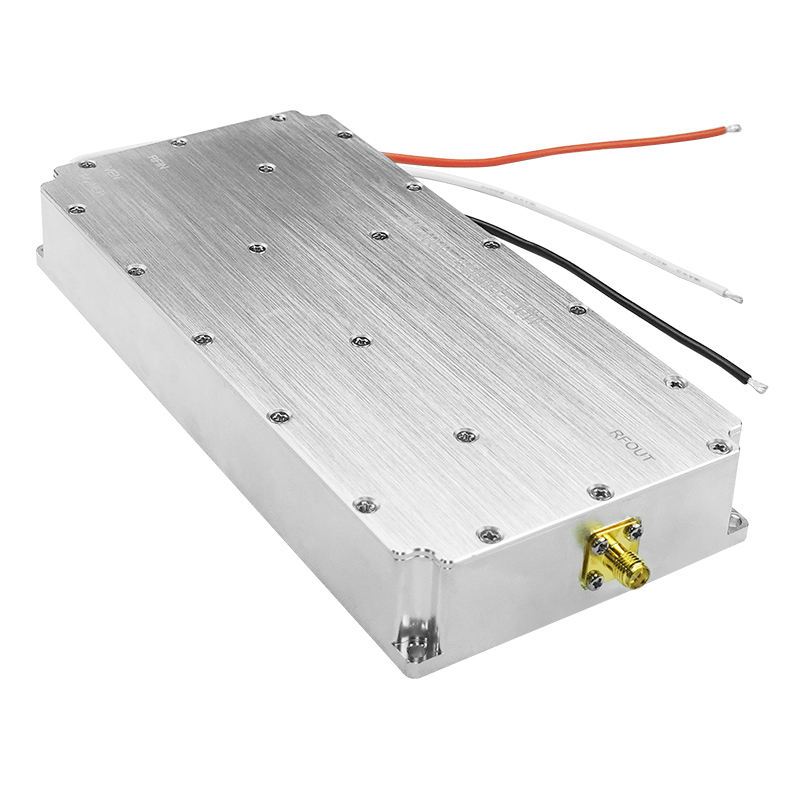

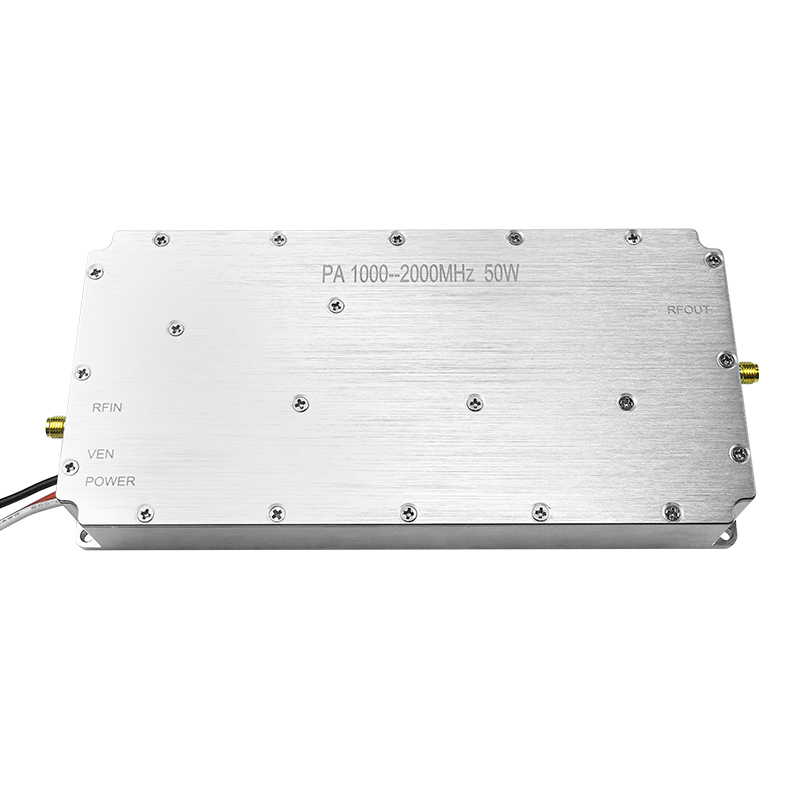

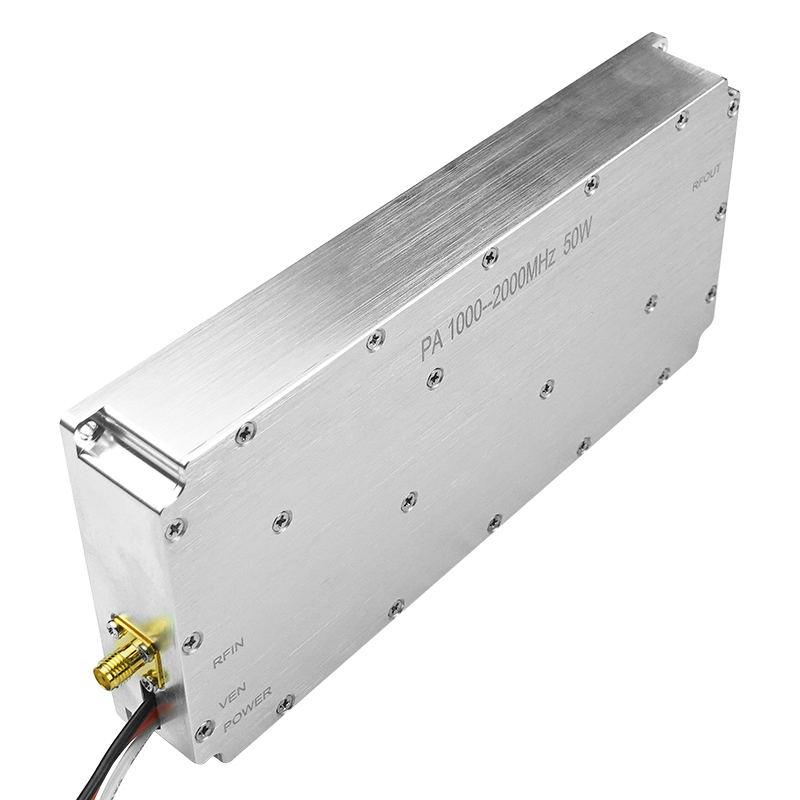

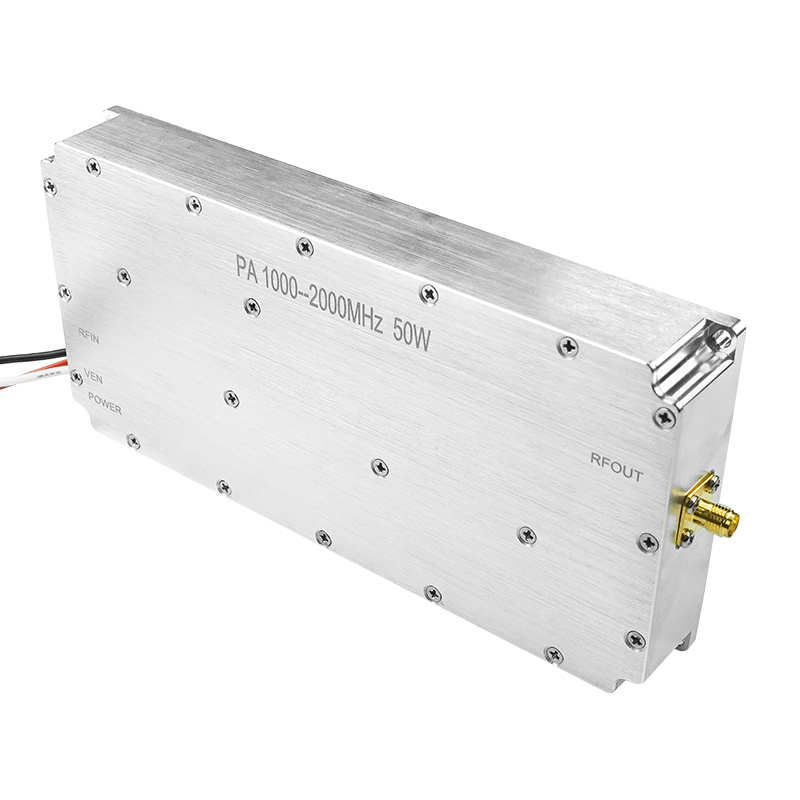

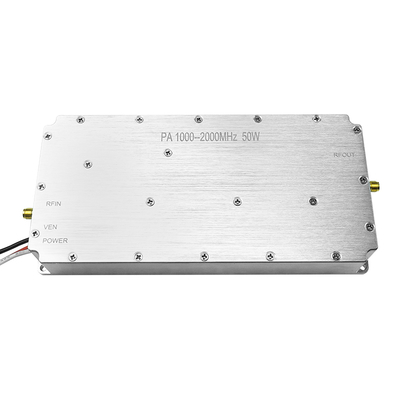

The 50W 100-2000MHz The bandwidth is flat, covering a wide frequency range. Customers can customize their outdoor anti-drone equipment based on their specific application scenario. The module is made of high-performance aluminum, ensuring stable output, low loss, and a long service life. Through RF vibration, it can amplify and transmit countermeasure signals over long distances. Developed and customized by Texin, please contact us for more details.
Features:

• 0-10dbm input customized
• 32-34V voltage support
• Wide band 100-2000mhz opation
• Bidirectional two connector in S
• Light weight portable to carry

• No.	Item	Data	Unit
  1	Frequency	830-935	MHz
  2	Test voltage	24-28	V
  3	Current	4	A
  4	Output	50	W
  5	Gain	47	dB
  6	Output stability	1	dB
  7	Connector	SMA / Female
  8	Output connector VSWR	≤1.30 (No power and VNA test)
  9	Standard input	0-10	dB
  10	Power supply wire	Red+Black+Enable wire
  11	Enable Control	High ON Low Off
  12	Out shell Size	177*84*26	mm
  13	Mount hole	170*78	mm
  14	Weight	733	g
  15	Work Temperature	-40~+65	℃
  16	Out shell material	Aluminum
  17	Vibration need	Car load OK

Working and storage environment requirements

1. Need working -40℃+65℃ environment
2. operate voltage within in 32-34V (option)
3. Use it before need connect antenna first
4. Long range distance working 1.5-2km but no have any obstruction
5. When working at high power, a heat sink needs to be installed

Texin factory products line
With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!

About the usage scenarios of this module

Exhibition

Application

Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.

FAQ

1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
