4 band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer equipment

اطلاعات پایه
محل منبع: شنژن چین
نام تجاری: TeXin
گواهی: CE ISO
شماره مدل: TX007-8059-5-18D65PCB
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: مورد بادوام
زمان تحویل: 5-8 روز
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 1000/ماه
اطلاعات تکمیلی
نام: 4 باند باند Jammer PCBA فرکانس: 800MHz 900MHz 1200MHz 5200MHz 5800MHz
ویژگی: 4 باند کاربرد: سیستم هواپیمای بدون سرنشین
حداکثر توان ورودی (W): 50 وات امپدانس ورودی: 50Ω
ابعاد: 284*97.5*40mm وزن: 0.35 کیلوگرم
مادی: PCB
برجسته کردن:

4 band high gain antenna,S connector 18dbi antenna,5800mhz anti drone jammer antenna

,

S connector 18dbi antenna

,

5800mhz anti drone jammer antenna


توضیحات محصول

4 band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer equipment
Product Overview

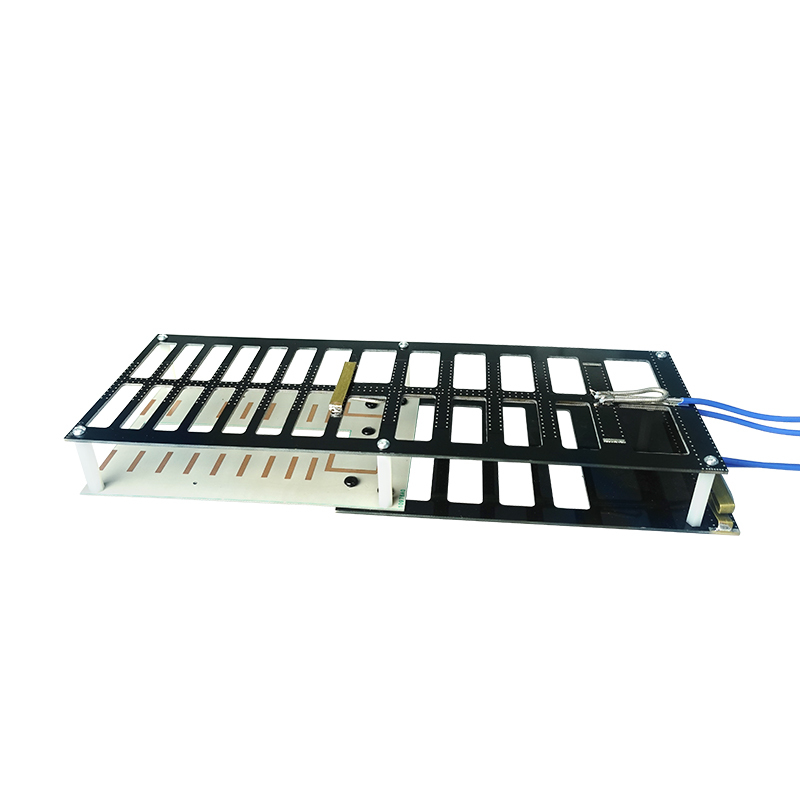

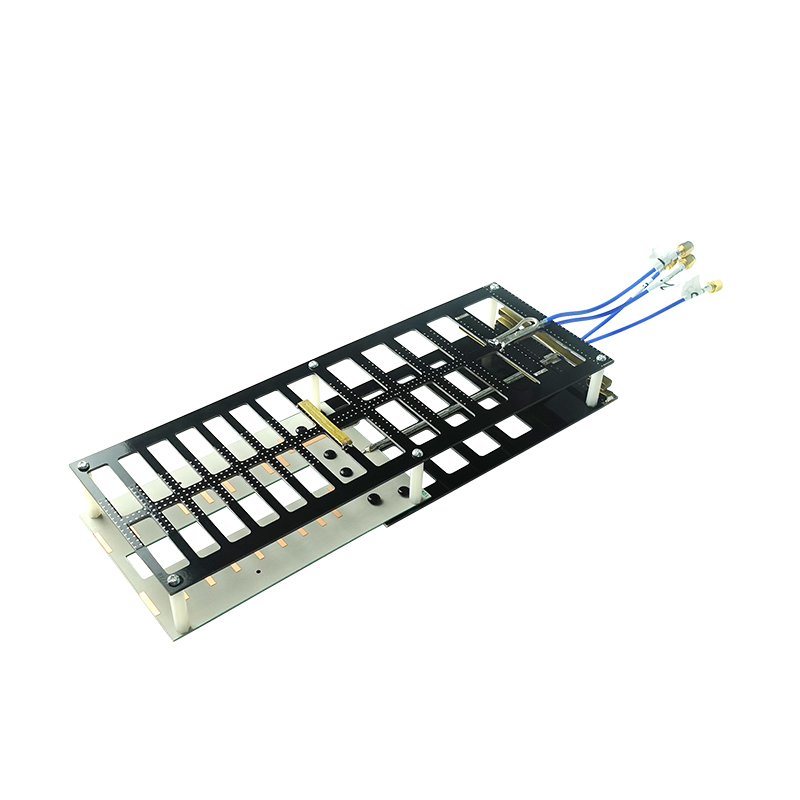

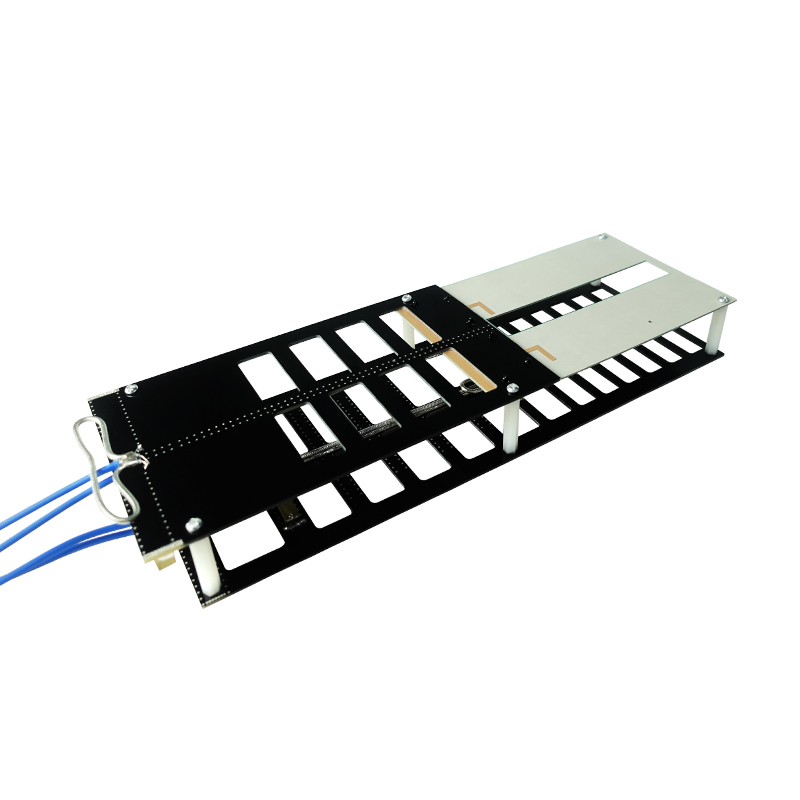

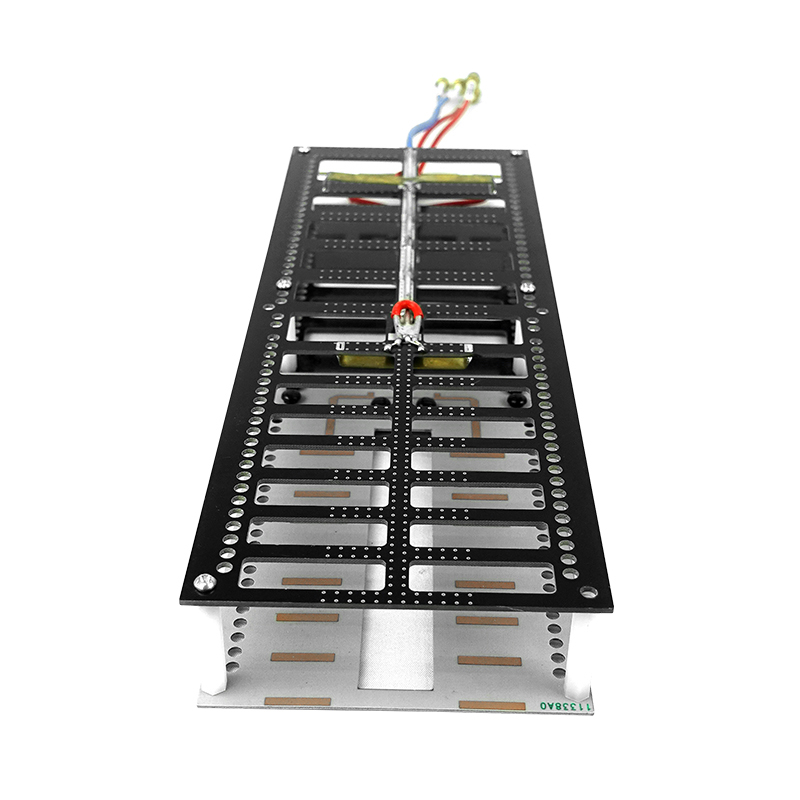

4 band drone jammer PCBA antenna

It is a light weight high gain 18dbi  PCBA antenna .This antenna is specifically designed for installing drone countermeasures. It can be used in government offices, large entertainment venues, schools, oil depots, prisons, and other locations. It supports four built-in frequency bands: 800MHz, 1.2GHz, 2.4GHz, 5.2GHz, and 5.8GHz.

  • High gain 18dbi PCBA  4band anti drone jammer antenna
  • 800MHz 1.2GHZ 2.4GHz 5.2GHz 5.8GHz  frequency band offer
  • Industrial grade manual soldering
  • Strong signal transmission effect
Electrical Specification

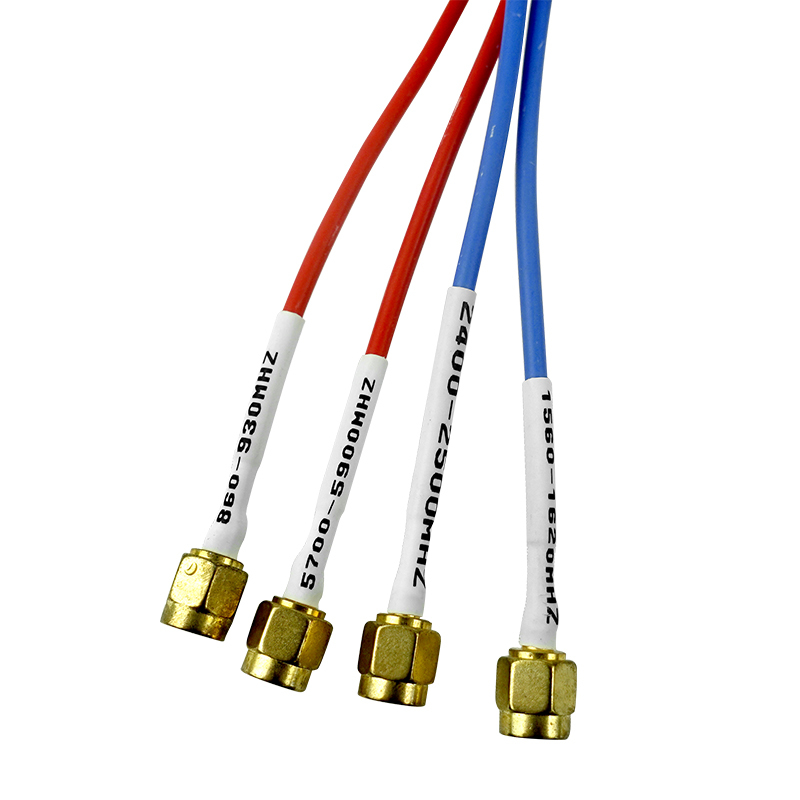

FrequencyRange 860-930/1560-1620/2400-2500/5700-5900MHz
Gain(dBi)

860-930MHZ 5dbi

1560-1620MHz 8dbi

2400-2500MHz 15dbi

5700-5900MHz 18dbi

VSWR ≤2
Polarization

860-930MHZ V

1560-1620MHz V 2400-2500MHz V

5700-5900MHz V

5700-5900MHz V

Horizontal Beamwidth(0º)

860-930MHz 65±5º

1560-1620MHz 65±5º 2400-2500MHz 65±3º

5700-5900MHz 45±3º

Vertical Beamwidth(0º)

860-930MHz 65±5º

1560-1620MHz 65±5º 2400-2500MHz 48±3º

5700-5900MHz 28±3º

Front-to-back ratio(dB) ≥18
Electrical lower inclination(0º)
Input Impedance(Ω) 50Ω
Maximum input power(W) 50W

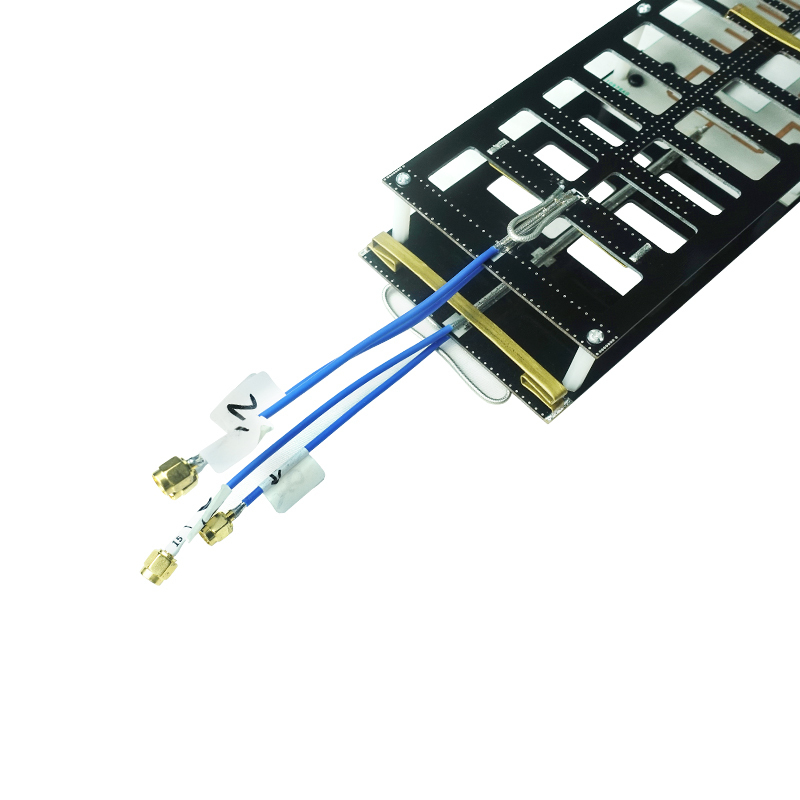

Input connector type 0864*SMS-J
Lightning Protection DC Ground
Mechanical Specification

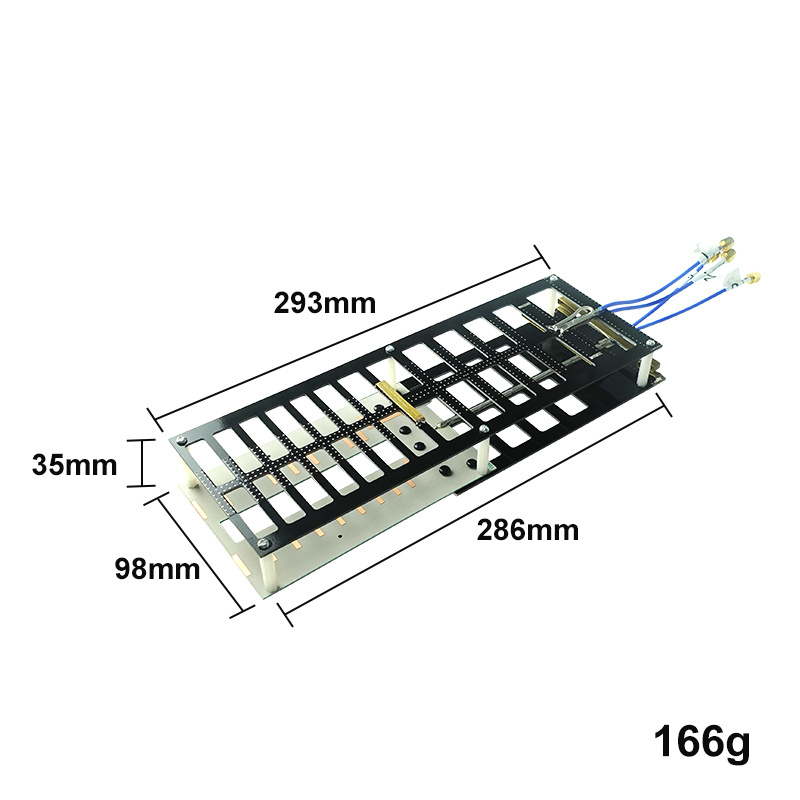

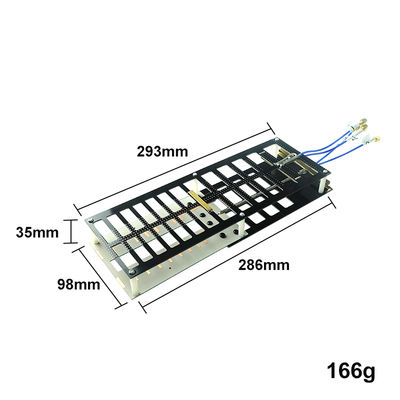

Dimensions­mm(Height/Width/Depth) 284*97.5*40mm
Packing size(mm)
Antenna weight(kg) 0.35kg
Operational Humidity(%) 10- 95
Radome Color Black color
Operating temperature(ºC) -30~70 º
Installution Method Handheld
Mounting hardware(mm) Built-In
Customer Service
  • User Instruction: we can offer online details photo illustration and video; local instruction is also available but with extra cost
  • Online technical support: our professional engineers will assist customers with technical problems
  • After sales service: our company will perform the agreed responsibility and duty during the warranty period
  • Free training lesson and daily maintenance
  • Fast reply of customer feedback and question
  • All product enjoy the 1 year warranty and Life time maintenance service

Texin Factory Products Line

With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!

4  band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer  equipment 0
4  band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer  equipment 1
4  band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer  equipment 2
4  band high gain S connector 18dbi 5800mhz 800mhz for anti drone jammer  equipment 3


Application

Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.

FAQ
1. Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3. Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed an order?
A. Let us know your requirement and product application through inquiry on Alibaba website B. We quote according to your specific need C. Customers agree with the quotation and make the payment
5. How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
