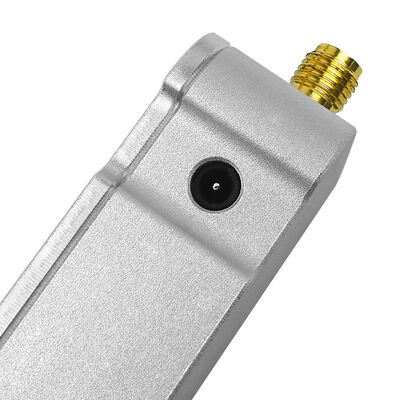

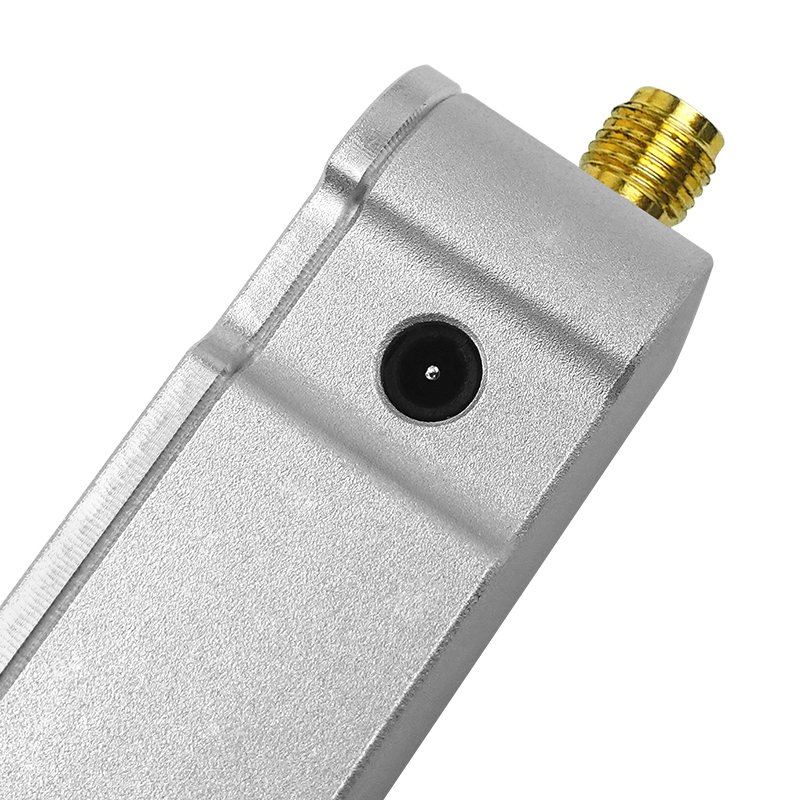

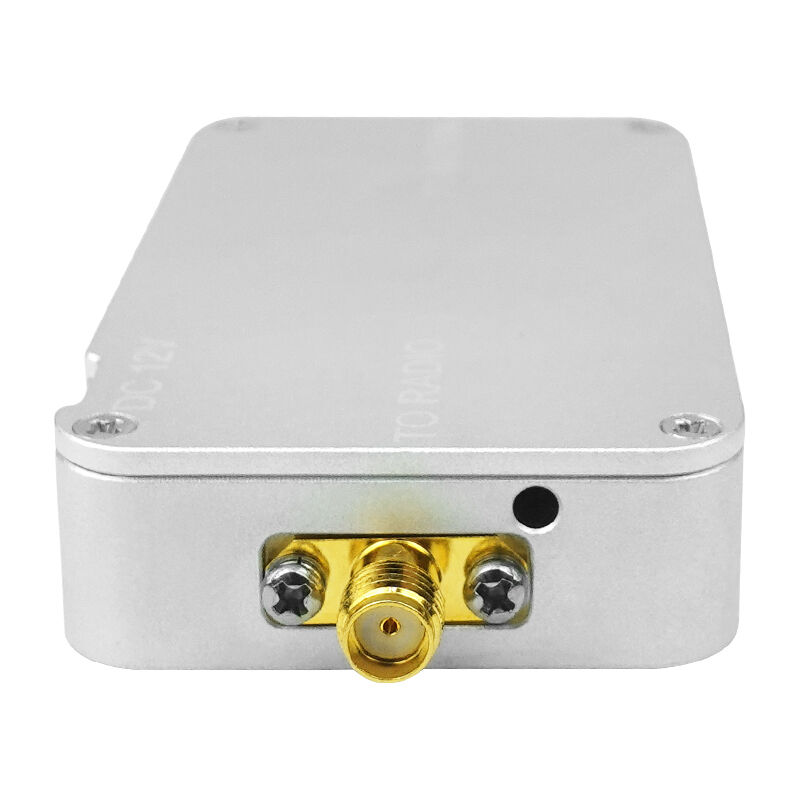

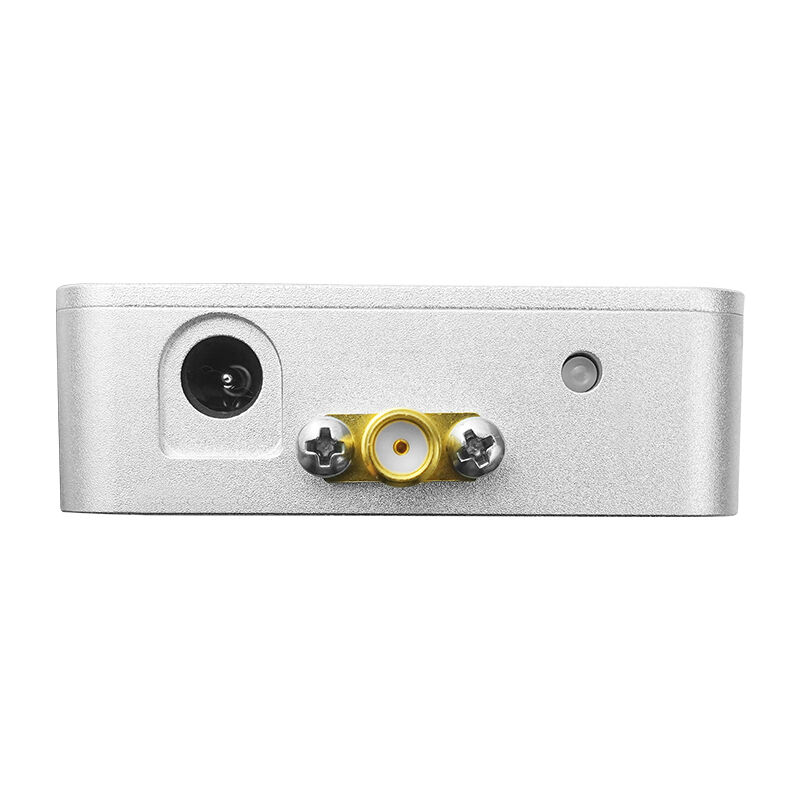

ODM&OEM 1420-1470MHz liner 10W bidirectional power amplifier module for drone FPV signal booster

THSA27010S-1420~1470MHz is a TDD bidirectional single-channel power amplifier featuring one channel for transmitting and one channel for receiving. This product is specially developed for 1420~1470MHz wireless image transmission applications and complies with wireless image transmission standards. Utilizing leading single-carrier modulation technology, it offers extremely long air transmission distance and strong anti-interference capability, compatible with frequency extension technologies including direct sequence radio frequency (DSSS) and orthogonal frequency division multiplexing (OFDM).

• 1420-1470MHz Frequency Range
• 12-31V Voltage Option
• Working Current: Approximately 1A
• Operating Humidity: Up to 95%
• Input Trigger Power: Min: 10dBm, Max: 26dBm
• EVM: 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
• Receiving Gain: 16dB±1
• Transmission Gain: 18dB±1
• TX/RX Switch Time Delay: <1 μs

• Temperature: -40℃ to +70℃
• Working Relative Humidity: 5% to 95%, no condensation
• Atmospheric Pressure: 70 to 106 kPa
• Humidity: Capable of operating in high temperature and high relative humidity environments (≥40℃ temperature, ≥95% relative humidity)
• Storage Temperature: -40℃ to +125℃
• Storage Humidity: 5% to 98%, no condensation
